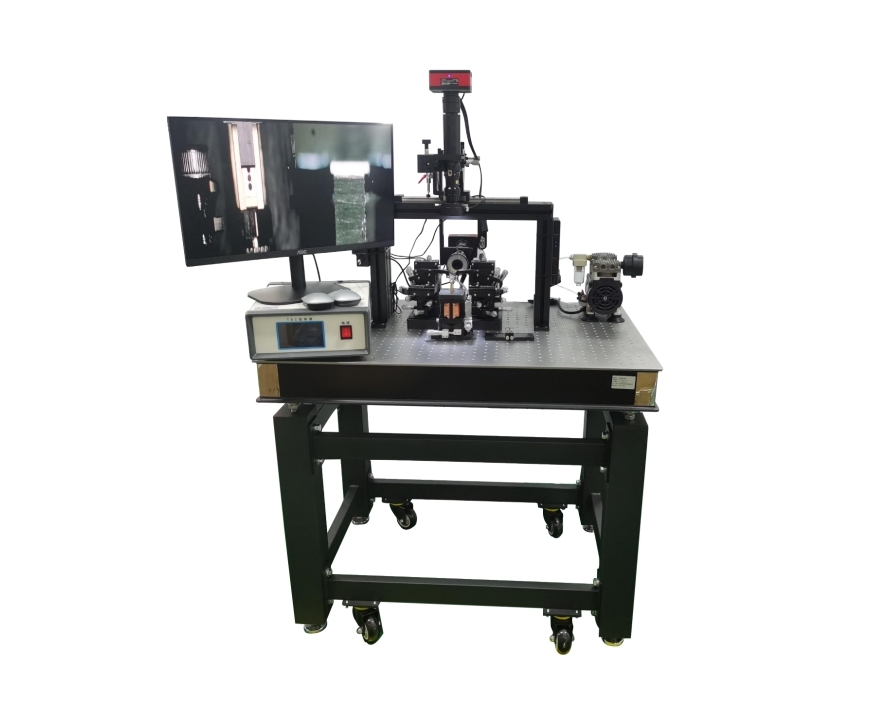

The Manual Coupling System primarily achieves alignment of fiber arrays (FA) or optical fibers by controlling manual six-axis stages (providing displacement in x, y, z, θx, θy, and θz directions) to bring them close to the chip for coupling. The system adopts high-precision stages, ensuring high coupling accuracy and excellent repeatability.
Product Features
Adopts high-precision stages to ensure adjustment accuracy;
Center chip stage allows fine adjustment in X and Y directions;
Equipped with quick-change fixture structure; various devices can be accommodated with simple fixture changes.
