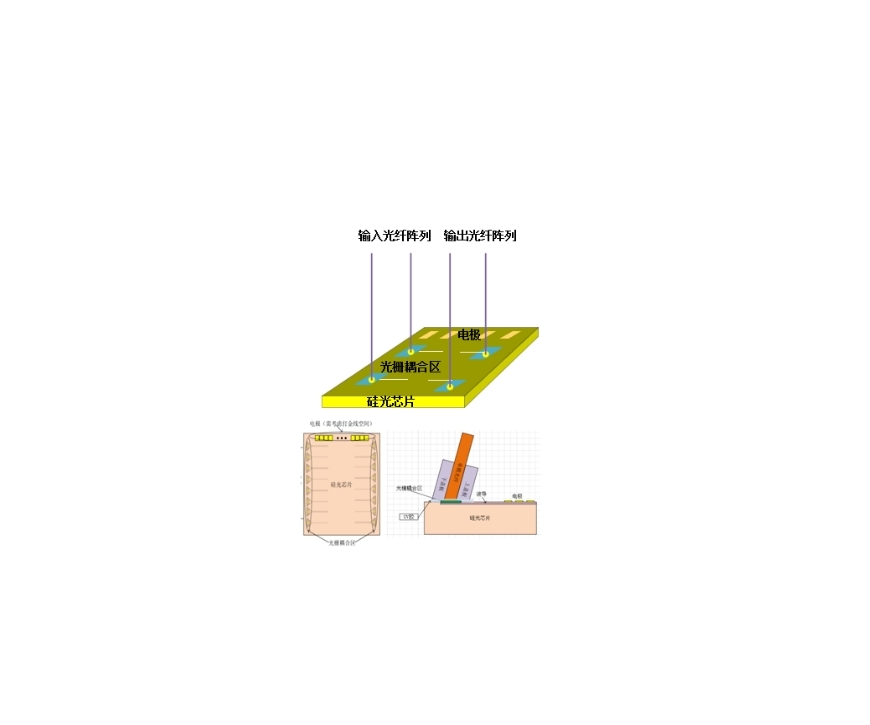

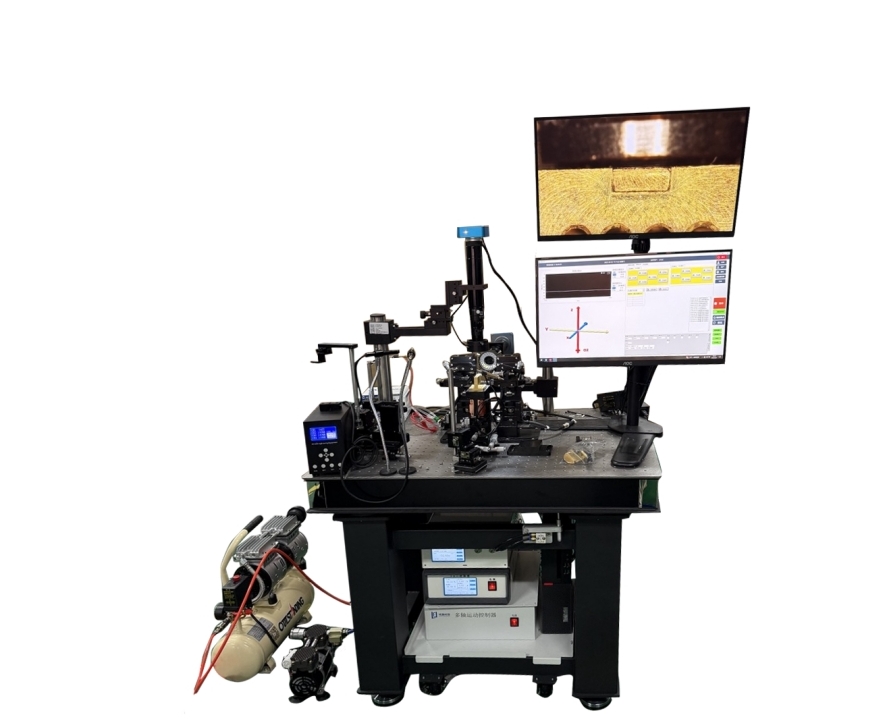

The Vertical Grating / Horizontal Edge Coupling Equipment enables coupling between optical fibers and gratings in both vertical and horizontal directions, with six-dimensional adjustment capability for fiber arrays. The system adopts high-precision stages, ensuring high coupling accuracy and excellent repeatability. The coupling module features a modular design, allowing the system to accommodate various devices with simple fixture changes, offering broad applicability and strong scalability.
